Hydrabollard AE632

Automated Equipment Co.

  Use anywhere you want to keep vehicles out
without disrupting pedestrian traffic flow
DOWNLOADABLE, PRINTABLE FLYER

Applications


• Stadiums
• Parking facilities
• Alleyways
• Boat launch control
• Parks and trails
• Emergency vehicle access



Features


• Hydraulic actuation
• 6.625-inch diameter schedule 40 pipe
• Rises to 32-inch height
• Reflective finish
• Easy swap-out replacement
• Safe for pedestrians when open or closed
• Hot-dip galvanized materials

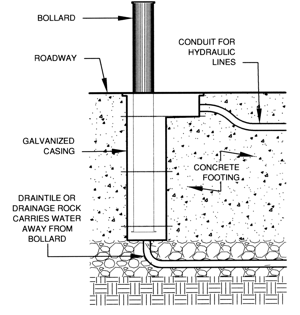

Fabrication and Installation



Specifications

• Motor
• Hydraulic pack
• Power supply
• Amp draw
• Cylinder speeds
• Cylinder dimensions
• Color
• Tempature range
• Cycles per hour
0.5 hp
1.5 gpm & 300 psi
120V/240V
4-8 amps
Raises in 12 seconds, Lowers in 10 seconds
32-inches high x 6.625-inch diameter
Caution yellow with reflective striping
-60°F to 240°F
Continuous

Specifications based on a single bollard system, specifications on two or more bollard systems will vary.






Options

• Dual bollards with independent operation
• Stainless steel fabrication
• Color (caution yellow is standard)
• Heaters for bollard and control cabinet
• Battery backup
• 220V AC or 208V AC
• Any access control device
